High Pressure Steel Industrial Cylinders
All our Cylinders are produced as per IS-7285, certified by the Bureau of Indian Standards (ISI) and approved by the Chief Controller of Explosives, Government of India.
We provide cylinders with water capacities that range between one liter and 160 literswc.
The table below gives detailed information on the cylinders meant for industrial use.
| MAX. WORKING
PRESSURE
AT 15C |
TEST
PRESSURE |
WATER
CAPACITY
(1 ltr.) |
GAS
CAPACITY
(Cu.m.) |
OUTSIDE
DIA 'D' |
MIN. WALL
THINKNESS
't'(mm). |
LENGTH
'L'
APPROX. (mm) |
TARE
WEIGHT
APPROX. (kg) |
| 150 kgf/cm2 |
250 kgf/cm2 |
1.0 |
0.2; |
76 |
3.2 |
310 |
2.5 |
| - |
- |
1.5 |
0.2 |
76 |
3.2 |
455 |
3.4 |
| - |
- |
2..0 |
0.3 |
108 |
3.5 |
330 |
4.5 |
| - |
- |
3.0 |
0.5 |
108 |
3.5 |
465 |
5.1 |
| - |
- |
4.0 |
0.6 |
108 |
3.5 |
600 |
6.5 |
| - |
- |
4.8 |
0.7 |
108 |
3.5 |
710 |
7.8 |
| - |
- |
5.0 |
0.8 |
108 |
3.5 |
735 |
8.0 |
| - |
- |
4.5 |
0.7 |
140 |
4.2 |
430 |
8.2 |
| - |
- |
5.0 |
0.8 |
140 |
4.2 |
465 |
8.8 |
| - |
- |
6.8 |
1.0 |
140 |
4.2 |
610 |
11.0 |
| - |
- |
7.5 |
1.1 |
140 |
4.2 |
655 |
11.8 |
| - |
- |
10.0 |
1.5 |
140 |
4.2 |
845 |
14.8 |
| - |
- |
10.2 |
1.5 |
140 |
4.2 |
855 |
14.9 |
| - |
- |
13.5 |
2.0 |
140 |
4.2 |
1,110 |
19.0 |
| - |
- |
14.0 |
2.1 |
140 |
4.2 |
1,145 |
19.5 |
| - |
- |
15.0 |
2.3 |
140 |
4.2 |
1,225 |
20.8 |
| - |
- |
6.8 |
1.0 |
165 |
5.0 |
470 |
12.7 |
| - |
- |
10.2 |
1.5 |
165 |
5.0 |
655 |
16.8 |
| - |
- |
13.5 |
2.0 |
165 |
5.0 |
835 |
21.0 |
| - |
- |
14.0 |
2.1 |
165 |
5.0 |
865 |
21.5 |
| - |
- |
15.0 |
2.3 |
165 |
5.0 |
920 |
22.7 |
| - |
- |
20.0 |
3.0 |
165 |
5.0 |
1,190 |
28.0 |
| - |
- |
22.0 |
3.3 |
232 |
5.5 |
675 |
29.0 |
| - |
- |
24.0 |
3.6 |
232 |
5.5 |
735 |
32.0 |
| - |
- |
27.0 |
4.0 |
232 |
5.5 |
830 |
35.0 |
| - |
- |
34.0 |
5.0 |
232 |
5.5 |
1,030 |
42.0 |
| - |
- |
40.0 |
6.0 |
232 |
5.5 |
1,200 |
48.0 |
| - |
- |
40.5 |
6.1 |
232 |
5.5 |
1,215 |
48.5 |
| - |
- |
45.0 |
6.7 |
232 |
5.5 |
1,330 |
53.0 |
| - |
- |
46.7 |
7.0 |
232 |
5.5 |
1,370 |
54.0 |
| - |
- |
50.0 |
7.5 |
232 |
5.5 |
1,455 |
58.0 |
| - |
- |
54.0 |
8.0 |
232 |
5.5 |
1,565 |
62.0 |
| - |
- |
38.0 |
5.7 |
267 |
6.3 |
910 |
52.0 |
| - |
- |
44.0 |
6.6 |
267 |
6.3 |
1,034 |
58.0 |
| - |
- |
50.0 |
7.5 |
267 |
6.3 |
1,150 |
63.0 |
| - |
- |
54.0 |
8.0 |
267 |
6.3 |
1,234 |
66.0 |
| - |
- |
56.0 |
8.4 |
267 |
6.3 |
1,260 |
68.0 |
| - |
- |
58.0 |
8.7 |
267 |
6.3 |
1,300 |
70.0 |
| - |
- |
68.0 |
10.2 |
267 |
6.3 |
1,500 |
78.0 |
| - |
- |
80.0 |
12.0 |
267 |
6.3 |
1,738 |
88.0 |
| MAX. WORKING
PRESSURE
AT 15C |
TEST
PRESSURE |
WATER
CAPACITY
(1 ltr.) |
GAS
CAPACITY
(Cu.m.) |
OUTSIDE
DIA 'D' |
MIN. WALL
THINKNESS
't'(mm). |
LENGTH
'L'
APPROX. (mm) |
TARE
WEIGHT
APPROX. (kg) |
| 204 kgf/cm2 |
340 kgf/cm2 |
1.0 |
0.2 |
76 |
3.2 |
310 |
2.5 |
| - |
- |
2.0 |
0.4 |
108 |
3.5 |
330 |
4.0 |
| - |
- |
3..0 |
0.6 |
108 |
3.5 |
465 |
5.1 |
| - |
- |
4.0 |
0.8 |
108 |
3.5 |
600 |
6.5 |
| - |
- |
5.0 |
1.0 |
108 |
3.5 |
460 |
8.0 |
| - |
- |
5.0 |
1.0 |
140 |
3.5 |
650 |
8.8 |
| - |
- |
7.5 |
1.5 |
140 |
3.5 |
840 |
11.8 |
| - |
- |
10.0 |
2.0 |
140 |
3.5 |
1100 |
14.8 |
| - |
- |
13.5 |
2.7 |
140 |
3.5 |
1135 |
19.0 |
| - |
- |
14.0 |
2.8 |
140 |
3.5 |
1210 |
19.5 |
| - |
- |
15.0 |
3.0 |
140 |
3.5 |
635 |
19.5 |
| - |
- |
22.0 |
2.0 |
165 |
4.6 |
855 |
20.8 |
| - |
- |
24.0 |
2.8 |
165 |
4.6 |
910 |
15.0 |
| - |
- |
27.0 |
3.0 |
165 |
4.6 |
685 |
19.6 |
| - |
- |
40.0 |
4.4 |
232 |
5.8 |
745 |
20.7 |
| - |
- |
45.0 |
4.8 |
232 |
5.8 |
840 |
30.0 |
| - |
- |
50.0 |
5.4 |
232 |
5.8 |
1210 |
33.0 |
| - |
- |
55.0 |
8.1 |
232 |
5.8 |
1340 |
36.0 |
| - |
- |
40.0 |
9.0 |
232 |
5.8 |
1465 |
49.0 |
| - |
- |
45.5 |
10.0 |
232 |
5.8 |
1595 |
54.0 |
| - |
- |
55 |
11.0 |
232 |
5.8 |
946 |
59.0 |
| - |
- |
50.0 |
8.0 |
267 |
6.1 |
1046 |
64.0 |
| - |
- |
60.0 |
9.0 |
267 |
6.1 |
1145 |
54.0 |
| - |
- |
75.0 |
10.0 |
267 |
6.1 |
1344 |
58.0 |
| - |
- |
80.0 |
12.0 |
267 |
6.1 |
1642 |
63.0 |
| 250 kgf/cm2 |
435 kgf/cm2 |
30.0 |
15.0 |
267 |
6.1 |
1742 |
72.0 |
| - |
- |
35.0 |
16.0 |
267 |
6.1 |
965 |
85.0 |
| - |
- |
40.0 |
7.5 |
232 |
7.0 |
1100 |
90.0 |
| - |
- |
50.0 |
8.8 |
232 |
7.0 |
1240 |
51.0 |
| - |
- |
55.0 |
10.0 |
232 |
7.0 |
1515 |
57.0 |
| - |
- |
35.0 |
12.5 |
232 |
7.0 |
1655 |
63.0 |
| - |
- |
45.0 |
13.8 |
232 |
7.0 |
850 |
75.0 |
| - |
- |
50.0 |
8.8 |
267 |
7.5 |
1070 |
81.0 |
| - |
- |
55.0 |
11.3 |
267 |
7.5 |
1230 |
55.0 |
| - |
- |
60.0 |
12.5 |
267 |
7.5 |
1300 |
65.0 |
| - |
- |
70.0 |
13.8 |
267 |
7.5 |
1350 |
73.0 |
| - |
- |
80.0 |
15.0 |
267 |
7.5 |
1550 |
78.0 |
| - |
- |
50.0 |
17.5 |
267 |
7.5 |
1750 |
84.0 |
| - |
- |
60.0 |
20.0 |
267 |
7.5 |
1140 |
93.0 |
| - |
- |
62.0 |
15.0 |
267 |
9.0 |
1375 |
100.0 |
| - |
- |
68.0 |
18.0 |
267 |
9.0 |
1425 |
81.0 |
| |
|
75.0 |
18.6 |
267 |
9.0 |
1560 |
91.0 |
| - |
- |
80.0 |
20.4 |
267 |
9.0 |
1720 |
112.0 |
Low Pressure Welded Cylinders

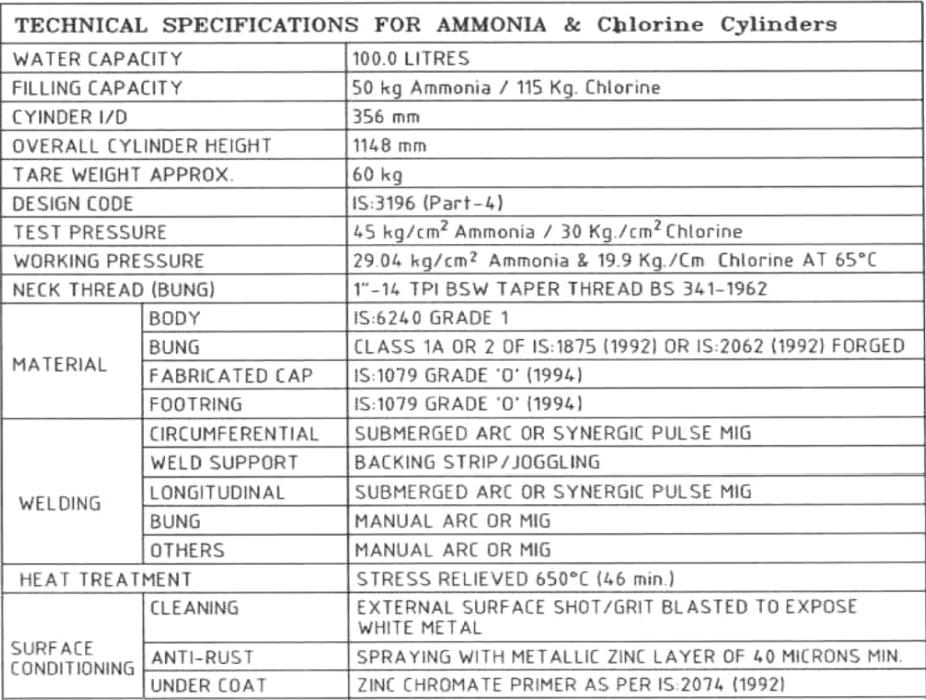

New Empty cylinder of 100 lts. WC duly fittedwith Valve, confirming to IS:3196 Part‐4, duly approved by CCOE & ISImarked, suitable for filling of Ammonia& chlorine.
Product will be supplied duly ISI marked and approved byCCOE. BIS test certificate will be provided along with the material.However in case your desire to inspect the cylinders, the same can becarried out at our works prior to dispatch.
Canister For Calibraiton Gases
All our seamless Aluminium Alloy High Pressure Cylinders are sourced from manufactures who manufactures using state of the art technology and, as per the BS EN 1975:2000 and IS 15660 standards at Manufacturing facilities. These cylinders are duly inspected and certified by TUV, India and approved by the Chief Controller Of explosives, Nagpur.
These Cylinder ranges from 500Ml canisters to 10 Liters water capacity with working Pressure of 150 Bar and Test Pressure up to 250 Bar, which are suitable to widest range of applications right from medical gases, fire extinguishers to calibration gases.
| Serial
No |
Water Capacity
ml |
Outside Dia
ml |
Filling Pressure
Kg/Cm2 |
Test Pressure
Kg/Cm2 |
Tare Weight
Gram |
| 1 |
500 |
65 |
30 |
45 |
180 |
| 2 |
500 |
65 |
50 |
75 |
210 |
| 3 |
500 |
65 |
150 |
225 |
520 |
High Pressure Aluminium Cylinders For Industrial & Calibration Gases
| Serial
No |
| Approx Water Capacity |
| Liters |
C.ft. |
|
| Approx Gas Capacity |
| C.mtr |
Liters |
|
| Outside Dia +/- 2% |
| Inch |
mm |
|
|
| Approx Tare weight |
| Lbs |
Kgs |
|
| 1 |
0.5 |
3.5 |
0.1 |
180 |
2.56 |
65 |
9.6 |
245 |
1.2 |
0.545 |
| 2 |
1 |
5.3 |
0.15 |
150 |
3.5 |
89 |
10.2 |
260 |
2.4 |
1.1 |
| 3 |
1.8 |
9.5 |
0.27 |
270 |
4.49 |
114 |
12.4 |
315 |
4 |
2.2 |
| 4 |
2.2 |
11.6 |
0.33 |
330 |
4.49 |
114 |
14 |
355 |
4.6 |
2.5 |
| 5 |
3.1 |
16.3 |
0.465 |
465 |
4.49 |
114 |
18.5 |
470 |
6.8 |
3.4 |
| 6 |
4.5 |
23.63 |
0.675 |
675 |
4.49 |
114 |
24.8 |
630 |
909 |
4.7 |
| 7 |
7.5 |
39.7 |
1.125 |
1125 |
5.51 |
140 |
29.5 |
750 |
17.2 |
7.8 |
| 8 |
9.1 |
48.8 |
1.365 |
1365 |
5.51 |
140 |
34 |
865 |
21.2 |
9.5 |
| 9 |
10 |
52.5 |
1.5 |
1500 |
5.51 |
140 |
37.8 |
960 |
25.3 |
10.2 |
